Access Doors
Facilitating safe access to ductwork. Hinged or Cam design.

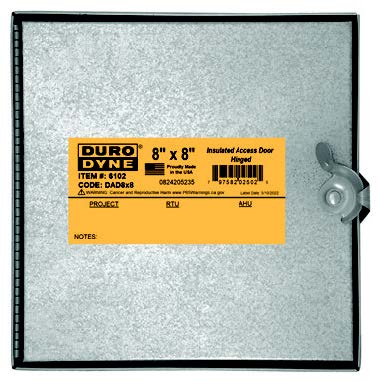

Insulated Access Doors
Hinged
Tab Style DAD
Gasket
Moisture, oil, and grease resistant neoprene
Insulation
Filled with 1˝ 1½ lb fiberglass
K factor
.26+.03@75F
Label
Product label leaves space for project notes
Gasket
Moisture, oil, and grease resistant neoprene
Insulation
Filled with 1˝ 1½ lb fiberglass
K factor
.26+.03@75F
Label
Product label leaves space for project notes

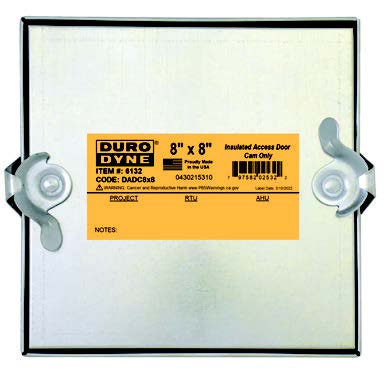

Cam
Tab Style DADC
Gasket
Moisture, oil, and grease resistant neoprene
Insulation
Filled with 1˝ 1½ lb fiberglass
K factor
.26+.03@75F
Label
Product label leaves space for project notes
Gasket
Moisture, oil, and grease resistant neoprene
Insulation
Filled with 1˝ 1½ lb fiberglass
K factor
.26+.03@75F
Label
Product label leaves space for project notes

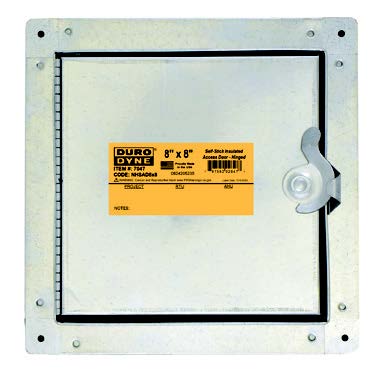

Self-Stick Insulated Access Doors
Hinged
Tab Style HSAD
Gasket
1˝ wide gasketed frame for fastening and sealing integrity
Easy Installation
Easy to position – No “dove tails” to align and bendfor project notes
Gasket
1˝ wide gasketed frame for fastening and sealing integrity
Easy Installation
Easy to position – No “dove tails” to align and bendfor project notes

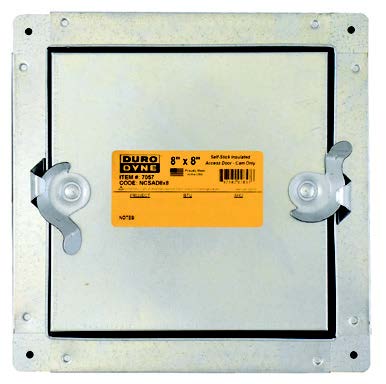

Cam
Tab Style CSAD
Gasket
1˝ wide gasketed frame for fastening and sealing integrity
Easy Installation
Easy to position – No “dove tails” to align and bend
Gasket
1˝ wide gasketed frame for fastening and sealing integrity
Easy Installation
Easy to position – No “dove tails” to align and bend

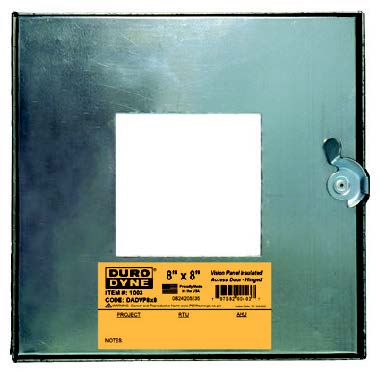

Vision Panel Access Doors – Tab Style HSAD
Hinged
Tab Style DADVP
Window
Allows viewing of inside ductwork. Two layers of shatter proof Lexan creates an insulated air pocket
Gasket
Door to frame & frame to duct neoprene gasket for airtight seal
Insulation
Filled with 1˝ closed cell foam
Window
Allows viewing of inside ductwork. Two layers of shatter proof Lexan creates an insulated air pocket
Gasket
Door to frame & frame to duct neoprene gasket for airtight seal
Insulation
Filled with 1˝ closed cell foam

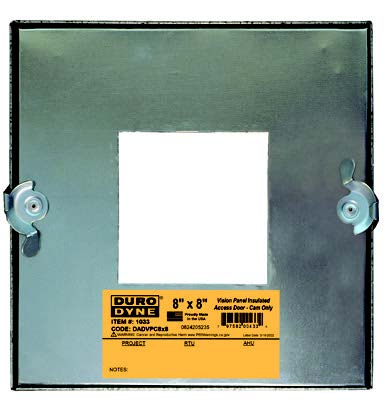

Cam
Tab Style DADCVP
Window
Allows viewing of inside ductwork. Two layers of shatter proof Lexan creates an insulated air pocket
Gasket
Door to frame & frame to duct neoprene gasket for airtight seal
Insulation
Filled with 1˝ closed cell foam
Window
Allows viewing of inside ductwork. Two layers of shatter proof Lexan creates an insulated air pocket
Gasket
Door to frame & frame to duct neoprene gasket for airtight seal
Insulation
Filled with 1˝ closed cell foam

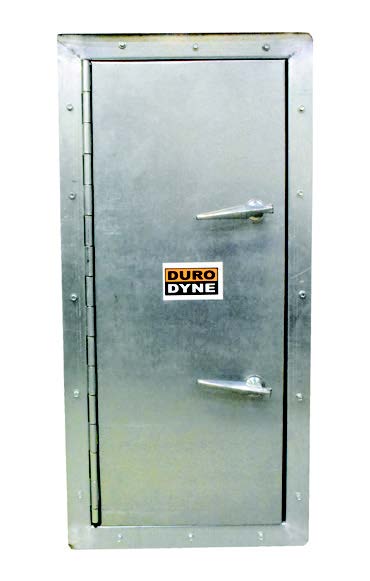

Hinged – Heavy Duty
Opening Size
Minimum 18˝w x 36˝h
Maximum 24˝w x 72˝h
Handles
36˝h to 60˝h – 2 SP-20 Handles
61˝h to 72˝h – 3 SP-20 Handles
Frame
14ga galvanized steel–mitered welded corners
Door
20ga galvanized steel – 1˝ Deep – Insulated
Minimum 18˝w x 36˝h
Maximum 24˝w x 72˝h
Handles
36˝h to 60˝h – 2 SP-20 Handles
61˝h to 72˝h – 3 SP-20 Handles
Frame
14ga galvanized steel–mitered welded corners
Door
20ga galvanized steel – 1˝ Deep – Insulated
CERTIFICATIONS
DuroDyne Fire Dampers are UL 555 approved and approved by the Standards and Appeals for use in New York City. Cal. 291-80-SA. Meets National Fire Protection Association – NFPA 90A.
